NodeMCU Lua Wi-Fi (IoT) modul - ESP8266, USB-C

Varenummer:156-067
Varekode:ESP8266-USB-C
Henter lager-information...
Henter lager-information fra leverandører...
Internet-pris
Ekskl. moms.
Kr. 95,20

ESP8266-USB-C NodeMCU Lua Wi-Fi (IoT) modul - ESP8266, USB-CESP8266-USB-C NodeMCU Lua Wi-Fi (IoT) modul - ESP8266, USB-C



ESP8266 CH340 TYPE-C Interface

Product Features:

802.11b/g/n

Built in Tensilia L106 ultra-low power consumption 32-bit micro MCU, with main frequency supporting 80

Built in 10bit high-precision ADC

Built in TCP/IP protocol stack

Built in TR switch, balun, LNA, power amplifier and matching network

Built in PLL, voltage regulator and power management components,+18dBm A-MPDU, A-MSDU aggregation and 0.4s protection interval in 802.11b mode

Wi Fi @ 2.4GHz, supporting WPA/WPA2 security mode

Support AT local upgrade and cloud OTA upgrade

Support STA/AP/STA+AP working mode

Support Smart Config functions (including for iOS devices) HSPI, ｜ ART, I2C, I2S, IR Remote Control, PWM, GPIO deep sleep holding current is 20 υ A. Turn off current is less than 5uA

Wake up, connect and transfer data packets within 2ms

Power consumption in standby mode is less than 1.0mW (DTM3)

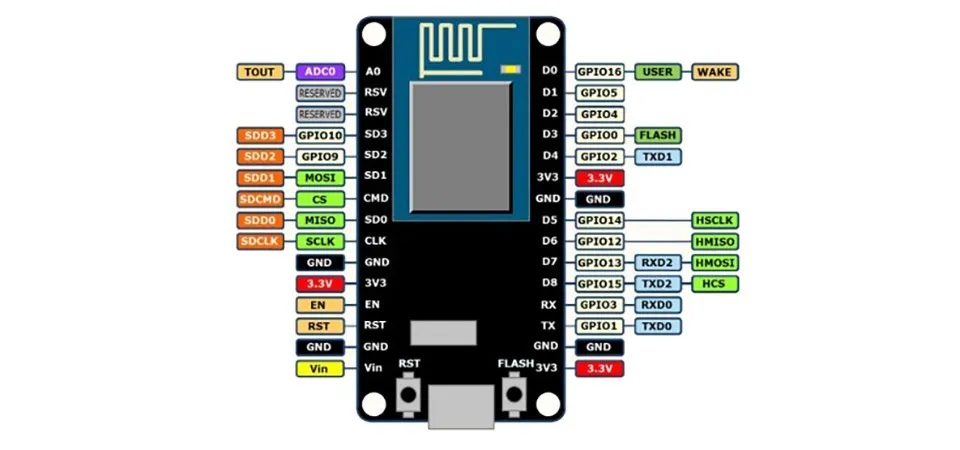

Application Circuit:
